MIXERS
Gerard Borg
ENGN4545
2007
Mixers
There are many articles on the basics of mixers on the web see for
example and the
following article on mixers in radio communications. Some useful
mixer terms that are important in the design of mixers can be found in
this reference from MINI-CIRCUITS.
MINICIRCUITS also put out a "how-to-select" information abd even a "Q&A" guide.
The mixer to be used in the project is the SBL-1.

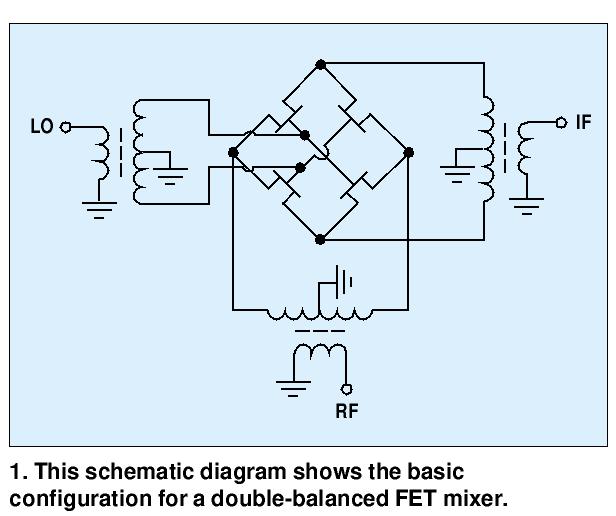

Schematic of a balanced ring mixer
Schematic of a balanced ring mixer
based on MOSFET technology.
