Software Design

This plan structures and organizes the software modules, including on-board control, off-board guidance, and intermediate interfaces, to create an architecture enabling supervised autonomy for an underwater robotic vehicle.

1.0 Objectives

The objective of this research is investigate underwater robotic autonomy. The software system is expected to:

· Enable an autonomous underwater vehicle to: observe the surrounding dynamic features, follow along static features, swim after dynamic targets, and search in a regular pattern.

· Investigate control techniques applicable to underwater robotic control and evaluate traditional feedback control as well as reactive, behavior-based, and neural-based methods.

· Develop visually-based control techniques

· Develop an approach to control of an underwater robot that combines fundamental reflexes with guidance by deliberative planning.

2.0 Approach

The sensing, planning, and control tasks that Kambara must perform are decomposed into computational processes. Each performs as independently as possible but the overall action of the robot depends on and is emergent from inter-process interaction. Within this decentralized model, processes consume and transform sensory input data and determine and produce output actions consistent with the robot's objectives.

3.0 Architecture Design

The software architecture details the overall structure and collective behavior of the software system. The software modules are designed as independent computational processes that communicate as shown in Figure 3-1. The Robot Manager is the downstream communication module, directing commands to the modules running on-board. The Feature Tracker uses visual sensing to follow targets in the environment and uses the relative motion to guide the Robot Neurocontroller or to generate control signals directly. The Robot Controller (Robot Neurocontroller) interprets position-based goals to produce control signals for the Thruster Controller. The Thruster Controller runs stable closed-loop servo control over all the robot's motions. The Peripheral Controller drives all other devices on the robot, for example cameras or scientific instruments. The Sensor Sampler collects sensor information and updates the controllers and the State Estimator. The State Estimator interprets sensor information to generate estimates, to dead reckon position, and passes raw and estimated state information off-board to the Telemetry Router. The Telemetry Router moves robot state and acquired image and science data upstream to any number of public consumers and a telemetry archives.

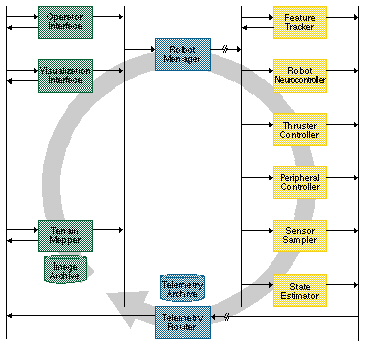

Figure 3-1: Architecture of all on-board and off-board software modules

The Visualization Interface transforms robot telemetry into a description of robot state that can be rendered in a three-dimensional view. The Operator Interface interprets telemetry and presents a numerical expression of robot state. It provides method for generating commands to the Robot Manager for direct teleoperation of robot motion and for supervisory control of the on-board modules. The Operator Interface can operate in conjunction with the Visualization Interface to preview robot actions.

The Path Planner interprets robot telemetry to analyze performance and adjust behavior accordingly, for example adjusting velocity profiles to better track a pattern. A Terrain Mapper could interpret terrain data (like images from peripheral sensors) into maps that can be rendered by the Visualization Interface or used by the Path Planner to modify walking behavior in anticipation of changes in the terrain. The Mission Planner plans sequences of Path changes for the Path Planner to produce complex trajectories for the robot. If terrain maps are available the Mission Planner can autonomously navigate the vehicle to goal locations.

The telemetry stream, images, and science instrument data is archived by various modules using a common referencing and synchronization scheme.

3.1 Operational Modes

The software architecture is designed to accommodate a spectrum of operational modes. Direct teleoperation of the robot with commands fed from the operator straight through to the controllers provides the most explicit control of robot action. While invaluable for development, this mode is not practical for long-delay telemetry conditions. Supervisory teleoperation, in which compound commands are sequenced off-board and then interpreted over time by the modules on-board, is the most common operational mode. Further along, large portions of the robots operation can be generated on-board as it essentially becomes an autonomous robot. Planners running off-board and on-board interpret the operator's infrequent guidance into sustained operation.

3.1.1 Direct Teleoperation

Under direct teleoperation, operator commands, in the form of single control commands interpretable by the Thruster Controller or Peripheral Controller are forwarded on-board by the Robot Manager. The Interfaces collects raw state information and transmits it off-board for the operator to view in the Operator Interface and Visualization Interface. This simplified architecture appears in Figure 3-2.

Figure 3-2: Modules active during direct teleoperation

3.1.2 Supervisory Teleoperation

Under supervisory teleoperation, the operator's commands are infrequent and provide guidance that is abstracted away from direct action commands. The operator gives guidance equivalent to "swim to that feature" and "remain on station" (but not in natural language) which the RobotManager forwards primarily to the on-board Robot Neurocontroller. The Robot Controller (Robot Neurocontroller) decomposes the plans into parameters that describe the robot behavior. The State Estimator aids in this operation by monitoring robot state and computing relevant estimates, like the position in the world. This state information is forwarded by Telemetry Router to the Visualization Interface and converted to form that can be used to render the current state of the robot. The Visualization Interface also interacts with the Operator Interface to enable the operator to preview potential commands. A Terrain Mapper could collect visual images from the telemetry stream and constructs elevation maps of the terrain, registered to a common coordinate system. These maps can be rendered in a virtual environment or displayed to the operator in various formats. This form of the architecture appears in Figure 3-3.

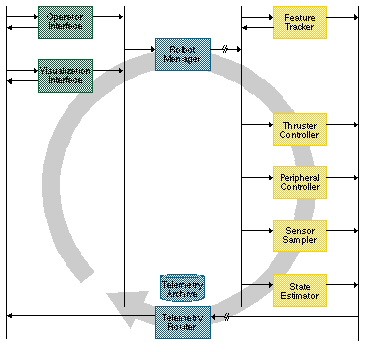

Figure 3-3: Modules active during supervisory teleoperation

3.1.3 Autonomous Operation

Under autonomous operation, the operator is removed from the primary control cycle. A Path Planner and Mission Planner (or group of planners), monitors telemetry to obtain state information and interact with a Terrain Mapper to generate command sequences for the robot. The planners may be guiding the robot over a long traverse, moving from one target to another, or thoroughly exploring a science site. The complete architecture appeared in Figure 3-1.

4.0 Functional Design of On-board Modules

4.1 Telemetry Router

4.1.1 Introduction

The Telemetry Router (tr) sends data at 5Hz upstream where it is logged and distributed. The telemetry is provided by on-board modules which access a shared data structure. Each periodic telemetry message is 347 bytes, as follows:

Pan, Tilt, Zoom
Linear Acceleration
Angular Velocity
Magnetic Disturbance
bx, by, bz
Field Distortion

Some telemetry occurs aperiodically in individual large messages:
Feature Tracker

4.1.2 Inputs

Telemetry data is input to the Telemetry Router by methods which store values into the telemetry data structure.

The Telemetry Router also requires specification of its output rate and the channel along which it will send data.

4.1.3 Processing

The function of the Telemetry Router is to regularly send state information from its internal data structure through an established communication channel to a single off-board module.

The Telemetry Router must open the communication channel, likely a socket connection using the UDP protocol, and write a stream of data to the channel.

The Telemetry Router need not perform any handshaking or data checking/correcting.

4.1.4 Outputs

The Telemetry Router must stream state information at regular intervals. Additional information including digitized images and error signals may be produced at irregular intervals.

4.1.5 Interfaces

(struct state)
Send state information with timestamp and (positions, velocities, alterations, forces, torques, power, and condition flags; inclinometer values; roll/pitch values; and condition flags)
(int id, struct state, struct data...)
Send a portion of an image with state
(int code, int datasize, int data...)
Signal an error condition

4.1.6 Performance

The Telemetry Router's nominal telemetry rate is 5Hz.

4.2 RobotManager

4.2.1 Introduction

The Robot Manager (rm) runs onboard the robot and receives commands from the Operator Interface and relays them to the appropriate onboard module. It maintains security by insuring that only one trusted operator interface can command the robot.

4.2.2 Inputs

The input is a command from an Operator Interface as defined in the 4.2.5.

4.2.3 Processing

The Robot Manager receives commands, likely via a TCP/IP socket, and verifies that the particular Operator Interface is allowed to issue commands to the robot. If so, the command is transmitted to the appropriate module.

4.2.4 Outputs

The Robot Manager passes command parameters to other onboard modules either by signaling or by invoking a local method.

4.2.5 Interfaces

Reset/reboot controller

(int joint)

(int thruster

Stop all motions

Stop motion of specific joint or thruster

(int joint, int position)
Command a specific joint to rotate to a relative position
(int thruster, int torque)
Command the torque of a specific thruster
(int device, int parameter, int value)
Set a parameter
(struct target)
Set parameters describing desired target.
(unsigned int command,

float argument,
int numWaypoints,
float x[10],
float y[10])
Track waypoint positions along a path.

4.3 Feature Tracker

4.3.1 Introduction

The Feature Tracker (ft) will implement feature and/or texture based correlation algorithms for following objects in the visual field of the robot. The changing position of these feature objects may be used by the robot controller to command change in the vehicle position and orientation or by the peripheral controller to command change in camera pan-tilt orientation.

4.3.2 Inputs

The Feature Tracker requires as input either an image of the extracted feature, an interest operator that extracts the feature, or the position and extent of the feature in an identified image.

4.3.3 Processing

The Feature Tracker will extract, transform and store the input feature, called a template. This feature is then located in the video stream of each camera of the stereo pair. Motion-based stereo in each stream track the movement of the feature in image space while position of the feature in the two streams (position-based stereo) is used to estimate the range to the feature.

The Feature Tracker will likely need to compensate for the change appearance of templates by filtering noise, normalizing variations, rectifying image distortion, and maintaining a collection of templates associated with each tracked feature.

4.3.4 Outputs

The Feature Tracker outputs the position of the feature in image space and the distance from the camera coordinate system to the feature.

4.3.5 Interfaces

(int x, int y, struct parameters)
Track feature at image coordinate {x,y}
(struct image)
Track feature with template
(struct parameters)
Identify a feature to track

4.3.6 Performance

The Feature Tracker must be capable of estimating the position and range of a target at 10Hz. It is desired that it be capable of tracking three independent targets at 10Hz.

4.4 Robot Controller (Robot Neurocontroller)

4.4.1 Introduction

The Robot Controller (currently designed as a neurocontroller) (rc) provides on-board thruster command generation and monitoring of vehicle state.

In the case of the Robot Neurocontoller, it must both generate stable control to move the vehicle, and learn the proper control signals to achieve the desired motion. Essentially the neurocontroller must learn an internal model of the vehicle and its control parameters from its experience in the world.

A conventional Robot Controller requires a preprogrammed physical model which it uses to control the vehicle

4.4.2 Inputs

The state of the robot as measured by the Sensor Sampler, estimated by the Thruster Controller, and derived by the State Estimator. Either information about goal position from the Robot Manager or about the position of the target feature from the Feature Tracker sets the desired state.

4.4.3 Processing

The controller determines (at high frequency) the thruster command vector that will best reduce the "distance" between the current state and the desired state, This is done by feedback control of the system using the input

The neurocontroller has at least two independent tasks, one which produces control commands and another which processes state and action information to learn how to better produce control commands.

4.4.4 Outputs

The output of the Robot Controller is a command to the Thruster Controller indicating the appropriate force levels for the vehicle's thrusters.

4.4.5 Interfaces

(struct position)
Move to a relative position (and absolute orientation)
(int numWaypoints,

struct position[numWapoints])

Follow waypoint positions along a path.

4.5 Thruster Controller

The Thruster Controller (tc) runs all on-board servo loops. It obtains setpoints form the Robot Manager or Robot (Neuro)Controller. It also provides thruster state information to the Sensor Sampler

The Thruster Controller is implemented in two parts, one of which runs on the main processor acting as an interface, the other of which runs on the processor dedicated to the motion control servos ("the servo loops").

4.5.1 Inputs

The input to the interface process is a vector of the desired force levels of the vehicle's thrusters. This processes passes to the servo loops the desired current for the thruster to consume.

4.5.2 Processing

The interface process must implement the thruster model in order to convert desired force to an appropriate current level. The servo loop must vary the PWM signal to the amplifier to effect the voltage of the amplifers. On the amplifiers a measurement of the current consumed by the motor is made. The servo loop varies the PWM signal, changing motor speed, and thereby changing the current consumed. The current consumed is proportional to thrust produced. The servo loop relays the voltage and current to the interface process

4.5.3 Outputs

The Thruster Controller outputs the motor voltage and current and its estimate of thrust forces. This data is collected by the Telemetry Router for forwarding and used by the Robot Controller.

4.5.4 Interfaces

Reset/reboot controller

(int thruster)

Stop all motions

Stop motion of specific thruster

(int thruster, int velocity)
Command the velocity of a specific thruster
(int thruster, int torque)
Command the torque of a specific truster
(int thruster, int parameter, int value)
Set a thruster parameter

4.6 Peripheral Controller

The Peripheral Controller (pc) initializes the various peripheral devices including imaging devices and pan/tilt actuators.

The Peripheral Controller initiates any calibration routines that are required at startup.

The Peripheral Controller is responsible for monitoring internal leak detectors, signalling any leakage condition, and shutting down computers and power when a leak occurs.

The Peripheral Controller grabs images as a result of aperiodic commands from the Robot Manager. Images are packetized for transmission by the Telemetry Router. A method of ensuring reliable transmission of all the parts of the image is necessary. The preferred design is to send the entire series of packets without handshaking each packet. Every packet would be annotated with the reconstruction information from the entire image. Dropped packets would be identified by the receiver and requested. The Peripheral Controller would then re-send only dropped packets.

The various on-board scientific instruments (as distinguished from internal sensors like the gyro and compass) may be initialized and sampled by the Peripheral Controller. Subprocesses, as necessary, collect instrument data streams and packetize them to be uplinked by the Telemetry Router.

· Device initialization

· Image digitization and deconstruction (packetization)

· Science instrument activation, data collecting, and deactivation commands

4.6.1 Inputs

The Peripheral Controllers initialization and calibration functions are initiated by the Robot Manager with little or no input data required.

The Peripheral Controller accepts commands to point and zoom the pan/tilt/zoom camera.

4.6.2 Processing

The Peripheral Controller initializes various onboard hardware devices that it will control including at this time, the pan-tilt-zoom interface. It acts as the controller for the

4.6.3 Outputs

The Peripheral Controller may write the results of initialization and calibration procedures to NVRAM.

The Peripheral Controller will write state information from the sensors it controls for

4.6.4 Interfaces

Reset/reboot the peripheral controller
(int device, struct parameters)
Initialize a device with parameters (including homing the pan/tilt)
(int device, struct parameters)
Calibrate a device with parameters
(int pan, int tilt, int absolute)
Move the pan/tilt to a relative or absolute orientation
(int zoom, int absolute)
Zoom to a relative or absolute
(int device, struct parameters)
Grab a single data set

4.7 Sensor Sampler

The Sensor Sampler (ss) interfaces all internal sensors including the gyro, accelerometer, compass, inclinometer, and temperature sensors and through the A/D and serial hardware collects their output at a fixed rate. This raw data is recorded for use by other onboard modules.

4.7.1 Inputs

The Sensor Sampler collects data from internal sensors at a fixed rate set externally.

4.7.2 Processing

Sampling is tied to hardware timers with signal interrupts when data is available. The function of the Sensor Sampler is extremely simple with almost all functions occurring at interrupt level. It is not envisioned that the Sensor Sampler will do any processing on the raw data beyond writing it to memory and perhaps signalling its availability.

4.7.3 Outputs

The Sensor Sampler writes into memory, described in 4.1.1, the values that it samples from the various devices.

4.7.4 Interfaces

Reset sampling
(int device, struct parameters)
Set the sampling frequency, filtering, etc. parameters

4.7.5 Performance

The State Estimator must compute its estimate at 10Hz.

4.8 State Estimator

The State Estimator (se) employs an extended Kalman Filter to estimate vehicle position, orientation, and velocity. Estimate are intended to correct over a short time period and not accurate long-time dead reckoning.

4.8.1 Inputs

The input to the State Estimator is the raw state from the various internal sensors, as recorded by the Sensor Sampler, and the control inputs to the actuators, as recorded by the Thruster Controller.

4.8.2 Processing

The State Estimator implements an extended Kalman Filter, utilizing input state information and a model of vehicle dynamics, to produce an estimate of vehicle position, orientation, and velocity.


The output estimate is recorded back to the global state data structure for use by other modules including control of motion by the Robot Controller and transmission upstream by the Telemetry Router.

4.8.3 Interfaces

(struct state)
Reset estimated state
(float frequency)
Frequency (in hertz) that estimates are generated

4.8.4 Performance

The State Estimator must compute its estimate at 10Hz.

5.0 Functional Design of Off-board Modules

5.1 Operator Interface

5.1.1 Introduction

The Operator Interface (oi) receives robot state information from the Telemetry Router and displays it to the operator. It accepts operator commands and sends them downstream to the Robot Manager.

The Operator Interface serves as the primary interface for human operators to the system. Continuously updated robot state information is displayed in a graphical environment. The robot can be directly teleoperated by sending primitive commands to the various controllers or supervisory guidance can be given by commanding the on-board Robot Manager.

· Robot teleoperation and supervisory control interface; the "dashboard"

· Direct actuator-level teleoperation for thruster motors

· Designate goal position or paths relative to environment

· Designate target features in the environment

5.1.2 Inputs

The Operator Interface received full state information from the onboard Telemetry Router. Aperiodic images may also be received.

The interface, as the name suggests, also receives input from operators. They operators may change the state of the Operator Interface to vary its appearance or to change the processing of the telemetry stream.

Operators may also input to the Operator Interface the selection of a particular command and the parameters to that command for transmission to the Robot Manager.

5.1.3 Processing

The Operator Interface, which may be two independent processes, must log the incoming telemetry stream and it must also display the telemetry data in appropriate numerical and graphical forms.

The Operator must receive from the operator commands for the robot

5.1.4 Outputs

To the visual display, the Operator Interface will display numerical and graphical interpretations of the robot state.

To file, the Operator Interface will output the incoming telemetry stream

To the Robot Manager, the Operator Interface will communicate commands selected and parameterized by the human operator.

5.1.5 Interfaces

(struct state)
Set current state information
(int code, int datasize, int data...)
Show an error condition to the operator

5.2 Visualization Interface

5.2.1 Introduction

The Visualization Interface (vi) receives vehicle state information from the Telemetry Router and transforms it into a form that can be used to updated the visualized robot model. (Terrain maps may eventually be rendered as well.) Interaction with the Operator Interface enables preview of robot commands in the simulated environment.

5.2.2 Inputs

The Visualization Interface requires the robot telemetry stream. For the purpose of previewing actions, it may eventually require commands issued by the Operator Interface.

5.2.3 Processing

The Visualization Interface uses the current telemetery and a stored physical model to produce a rendering of Kambara. Its position relative to a fixed coordinate system and its orientation are visualized.

5.2.4 Outputs

The Visualization Interface produces a rending of the the robot and its surroundings.

5.2.5 Interfaces

(struct state)
Set current state information and render
(struct state)
Set state information in preview format
(int x, int y, struct terrain)
Display a portion of the terrain elevation (not implemented yet)

5.3 Path Planner

5.3.1 Introduction

The Path Planner (pp) is conceived by will not be included in initial implementations.

The Path Planner receives vehicle state information (and potentially environment and terrain information) and analyzes it to modify the behavior of the Robot Controller via messaged commands to the Operator Manager

5.3.2 Interface

(struct goal, struct goal,...)
Plan trajectories connecting the goals

5.4 Mission Planner

5.4.1 Introduction

The Mission Planner (mp) is conceived but will not be included in initial implementations.

The Mission Planner receives vehicle state information (and potentially environment and terrain information) and analyzes to direct the function of the Path Planner and cause, for example, the Path Planner to steer the vehicle to a goal and stop.

Mission Planner(s), for future development, can interact with the Operator Interface to transform strategic commands into tactical commands that the Robot Controller can interpret. Other functions could include analyzing terrain maps to suggest to the Robot Controller viable avenues of travel, etc.

· Automatically generate feasible command sequence to reach path waypoints

· Revise/simplify existing path control components

· Verify command feasibility quantify execution fidelity

5.4.2 Interface

(struct goal, struct goal,...)
Plan trajectories connecting the goals

5.5 Terrain Mapper

5.5.1 Introduction

The Terrain Mapper (tm) is conceived but will not be included in initial implementations.

The Terrain Mapper reconstructs images send in packets from the Telemetry Router. These reconstructed images may then run through a stereo processing algorithm to generate terrain elevation maps. These maps can then be passed to the Visualization Interface for rendering in the virtual environment and to the Path and Mission Planners for use in determining robot behavior.

5.5.2 Inputs

The Terrain Mapper will operate on stereo image pairs either from live streams or from selected recorded stills.

5.5.3 Processing

· Assemble and decompress of image packets

· Solve pixel correspondence for stereo pairs

· Compute disparity/depth

· Transform depth into elevation grid (and regularize the grid)

· Build high-resolution non-uniform terrain mesh

· Verify terrain/elevation grid accuracy and calibrate

· Merge multiple elevation grids

· Archive elevation map

5.5.4 Outputs

The output of the Terrain Mapper is a three-dimensional terrain mesh. This may be used for planning or to visualize the surrounding environment.

5.5.5 Interfaces

(int id, struct state, struct data...)
Process a portion of an image to be reconstructed
